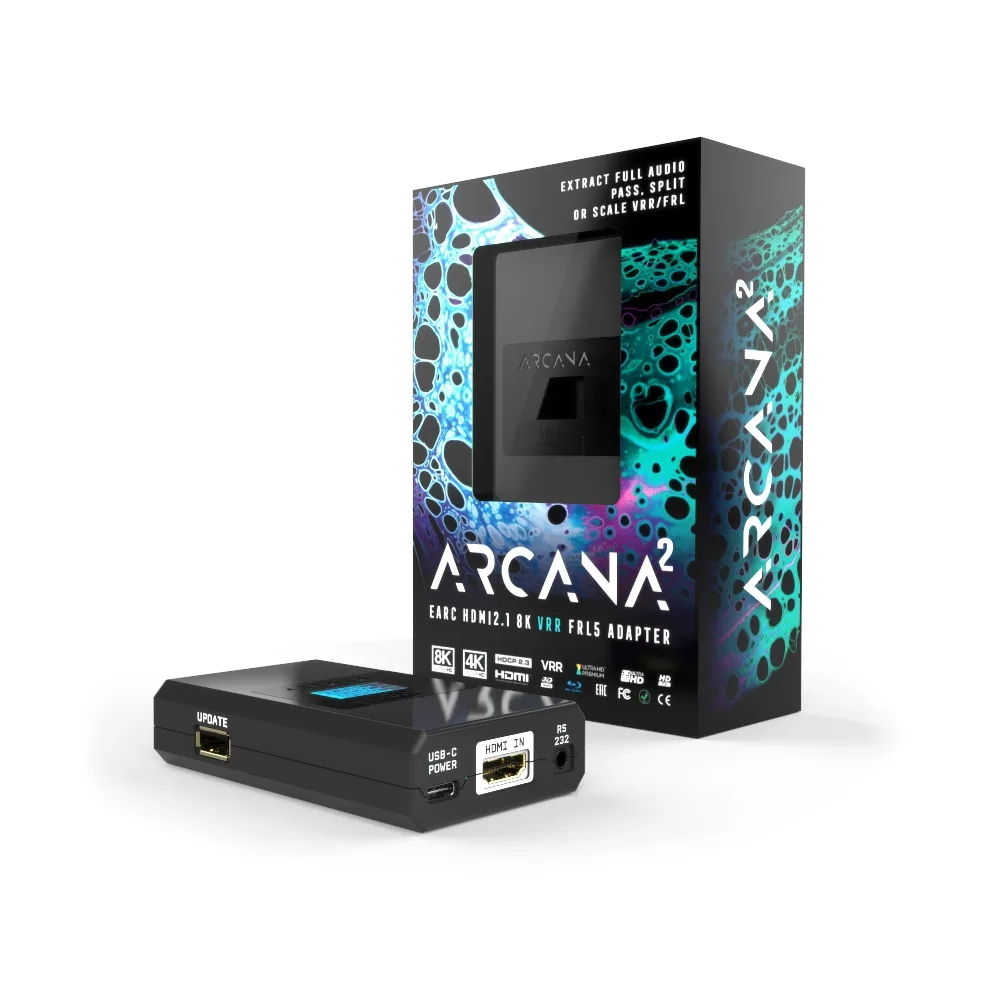

HDfury 8K Arcana 2 eARC Adapter
- SKU
- ARCANA2
- Barcode
- 631384548552
- Downscale ANY FRL or TMDS signals 8K>4K, 4K>2K or 8K>2K up to 120Hz
- Unlock true FRL/VRR on Samsung Q90/QN900/QN95 and similar models
- Pass ANY FRL/VRR signals and downscale the secondary output for Hue Sync
- Up to 8K60 444/RGB 12-bit via DSC at 96Gbps
Overview
HDfury 8K Arcana 2 eARC Adapter by HDfury, model ARCANA2. Listed under Signal Converters in our Audio Visual range.
Key features
- Downscale ANY FRL or TMDS signals 8K>4K, 4K>2K or 8K>2K up to 120Hz
- Unlock true FRL/VRR on Samsung Q90/QN900/QN95 and similar models
- Pass ANY FRL/VRR signals and downscale the secondary output for Hue Sync
- Up to 8K60 444/RGB 12-bit via DSC at 96Gbps
- Best Audio to your sound system and Best Video to your display, Always & Guaranteed!
- World First 40Gbps Upscaler, Downscaler, Splitter with full audio extraction for VRR and any signals
- Full Audio from ANY HDMI source (including VRR signal) to ANY HDMI, ARC or eARC sound system
- Full Audio up to Atmos/TrueHD from any HDMI source to SONOS Arc & Beam 2 or any eARC sound system
Specifications
| HDMI revision | HDMI 2.0b (Level A) 600Mcsc - 18Gbps |
|---|---|
| Arcana Support | 600MHz/18Gbps HDR, HDR10+, HLG, DV & LLDV, eARC, ALLM, IMAX |
| Max Resolution | 4K60 4:4:4 8b, 4K60 4:2:2 12b, 4K120 4:2:0 8b or 8K30 4:2:0 8b |
| TOTAL I/O | 1 HDMI In, 1 HDMI Out, 1 HDMI eARC Out, 1 RS232, 1 USB-A (update), 1 USB-C (power) |
| Pass & Downscale port | UHD 2160p & 4K/DCI to FHD 1080p & 2K/DCI |
| Full Audio eARC port | Full Audio up to Atmos over TrueHD from HDMI source at input to eARC sound system such as SONOS Arc & Beam 2 |
| Signal Conversion | Resolution, Chroma Subsampling, Color Space, Color Depth, HDCP |
| HDCP Conversion | Any HDCP to any HDCP with CST1 support |
| Operating Modes | 18Gbps Scaler & Splitter with CEC, eARC, ARC and EDID management |
| Special Modes | DV/LLDV to HDR10 display, Boost HDR nits value, Translate HLG>HDR, HDMI Doctor |
| EDID Modes | TV only, TV video + SONOS audio, SONOS only, optional LLDV datablock for all modes |
| Control Modes | OLED and rotary switch with click and push buttons, RS232 |
| On Screen Display | ON/OFF/timer with choice of text color |
| OLED | 1″ Diagonal, 128×64, 2 colors |
| Arcana Size | 10 x 6 x 2.2cm |
| Arcana Weight | 120g |
| Input Lag | <1ms (nanoseconds count) |
| Other info | 3D Support, CEC Pass Through, DSD, eARC (HDMI2.1) |
In the box
- HDfury Arcana 2 eARC Adapter
