DZOFilm
DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0 Degrees Direct View, ARRI PL)
- SKU
- DZO-X1828A
- Barcode
- 842463103368
- Full Frame Probe
- T8 Maximum Aperture
- Innovative Probe Zoom for Close-Ups
- 0.8 MOD FIZ Gears, 300° Focus Rotation
Overview
DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0 Degrees Direct View, ARRI PL) by DZOFilm, model DZO-X1828A. Listed under Industrial Lenses in our Video range.
Lens mount: ARRI PL. Weight: 2.4 lb / 1.09 kg.
Key features
- Full Frame Probe
- T8 Maximum Aperture
- Innovative Probe Zoom for Close-Ups
- 0.8 MOD FIZ Gears, 300° Focus Rotation
- 2.1:1 Image Magnification
- Versatile 73 to 100° Angle of View
- Minimum Focus: 0.24″
Specifications
| Maximum Aperture | T8 |
|---|---|
| Minimum Aperture | T22 |
| Lens Mount | ARRI PL |
| Interchangeable Mount | No |
| Lens Format Coverage | Full-Frame |
| Image Circle | Not Specified by Manufacturer |
| Angle of View | Full Frame Horizontal: 100 to 73° |
| Focus Scales | Metric |
| Filter Thread | No |
| Zoom Ratio | 1.56x |
| Minimum Focus Distance | From Front of Lens: 0.2" / 6 mm |
| Maximum Magnification Ratio | 2.1:1 |
| Diaphragm Blades | Not Specified by Manufacturer |
| Image Stabilisation | No |
| Lens Mounting | 1x 1/4"-20 (via Included Support Foot) 3x 3/8"-16 (via Included Support Foot) |
| Gear Standard | Focus: 0.8 MOD Iris: 0.8 MOD Zoom: 0.8 MOD |
| Gear Rotation | Focus: 300° |
| Electronic Communication | No |
| Coating | Multi- & Resistance-Coated |
| Environmental Resistance | Water-Resistant (Unrated) |
| Diameter | Front: 1.2" / 29.6 mm |
| Length | 16.3" / 415 mm |
| Weight | 2.4 lb / 1.09 kg |

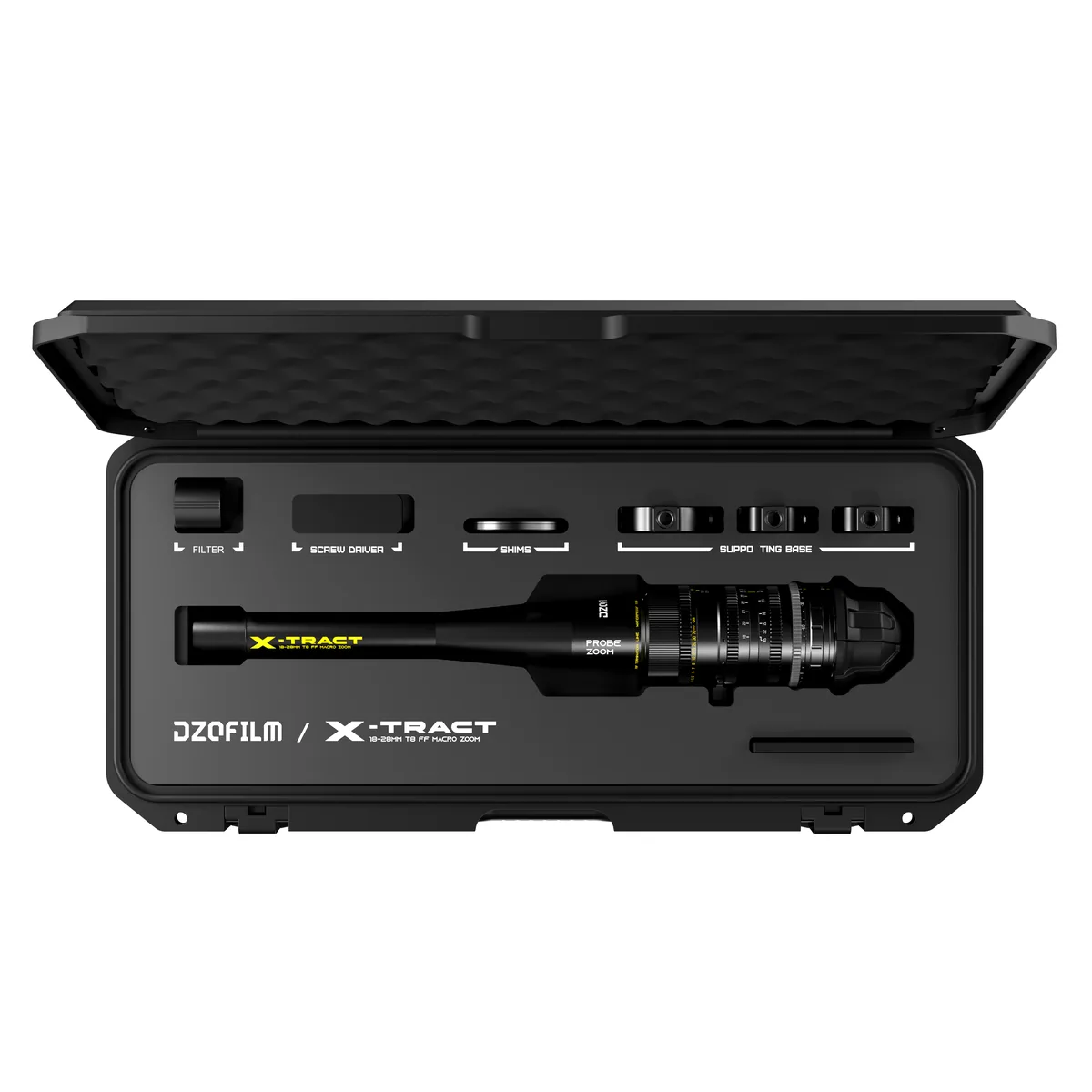

In the box
- DZOFilm X-Tract 18-28mm T8 FF Probe Zoom Lens (0° Direct View, ARRI PL)
- Front Cap
- Rear Cap
- Y-Bracket Support
- Bolt Driver
- Shim Set
- Hard Case with Foam Inlay
- Support Ring
