DJI

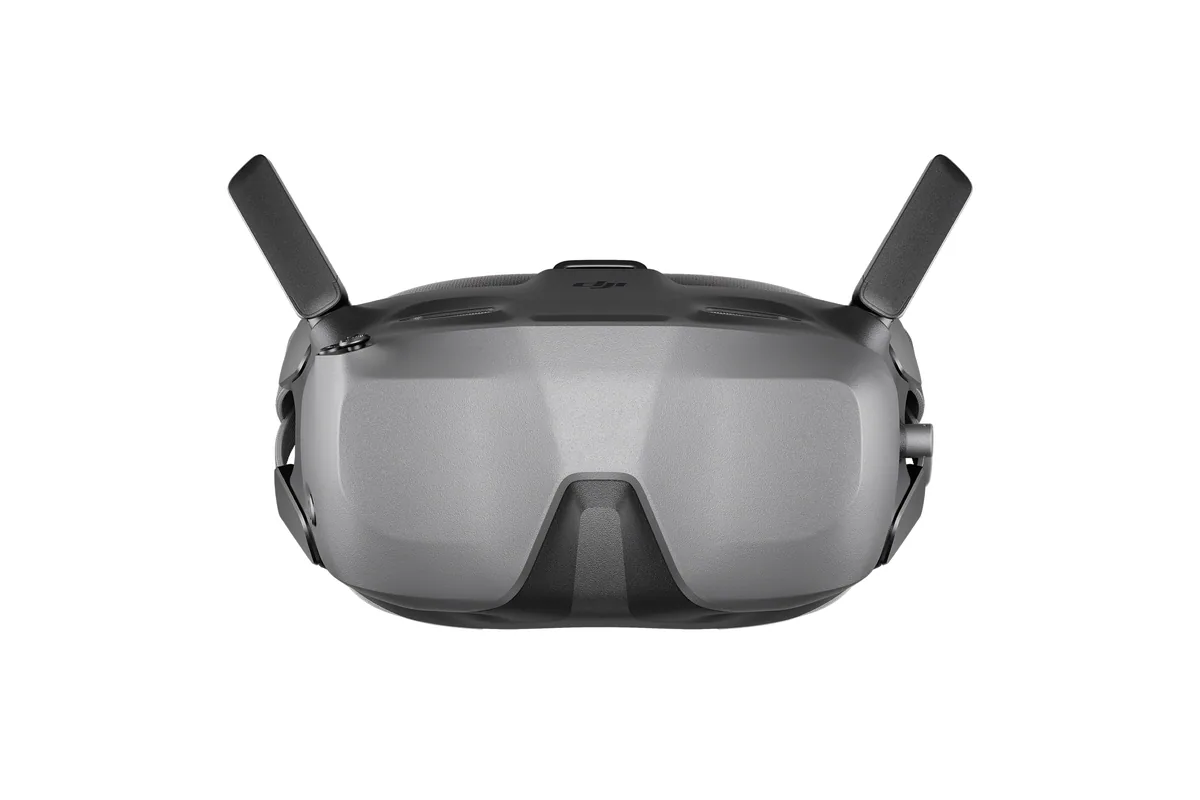

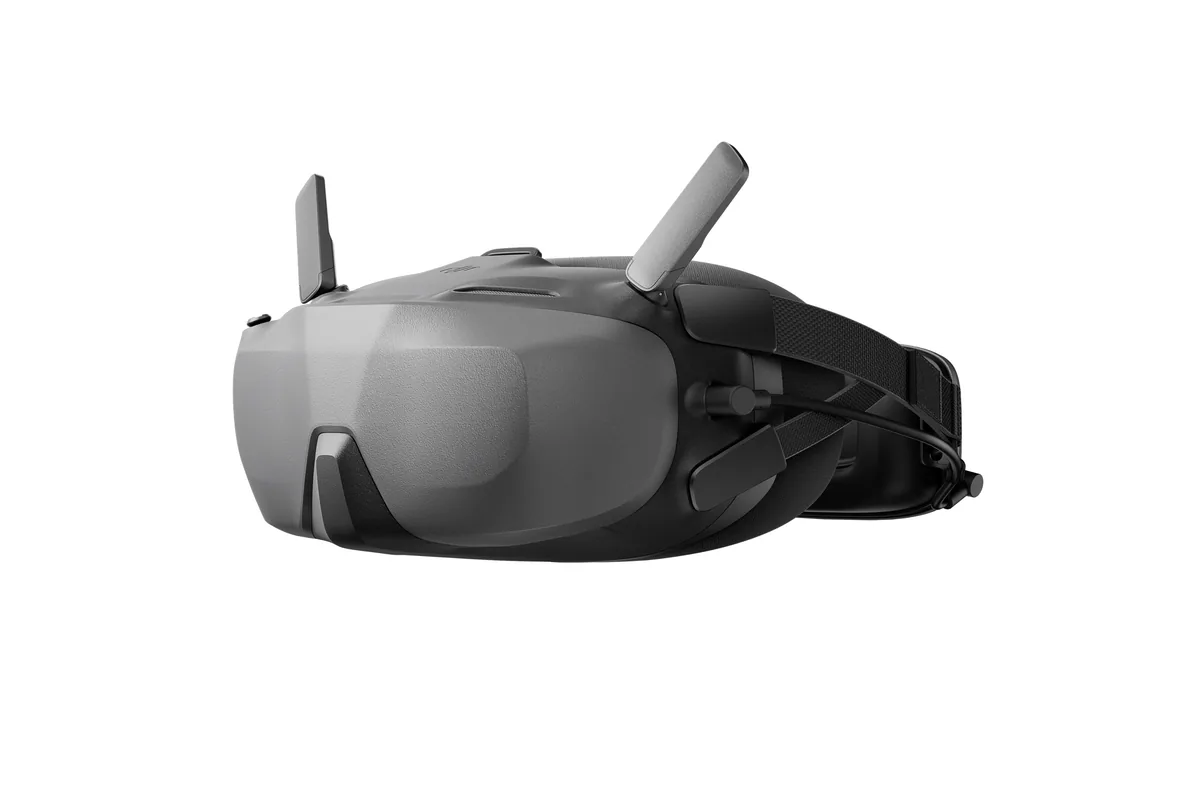

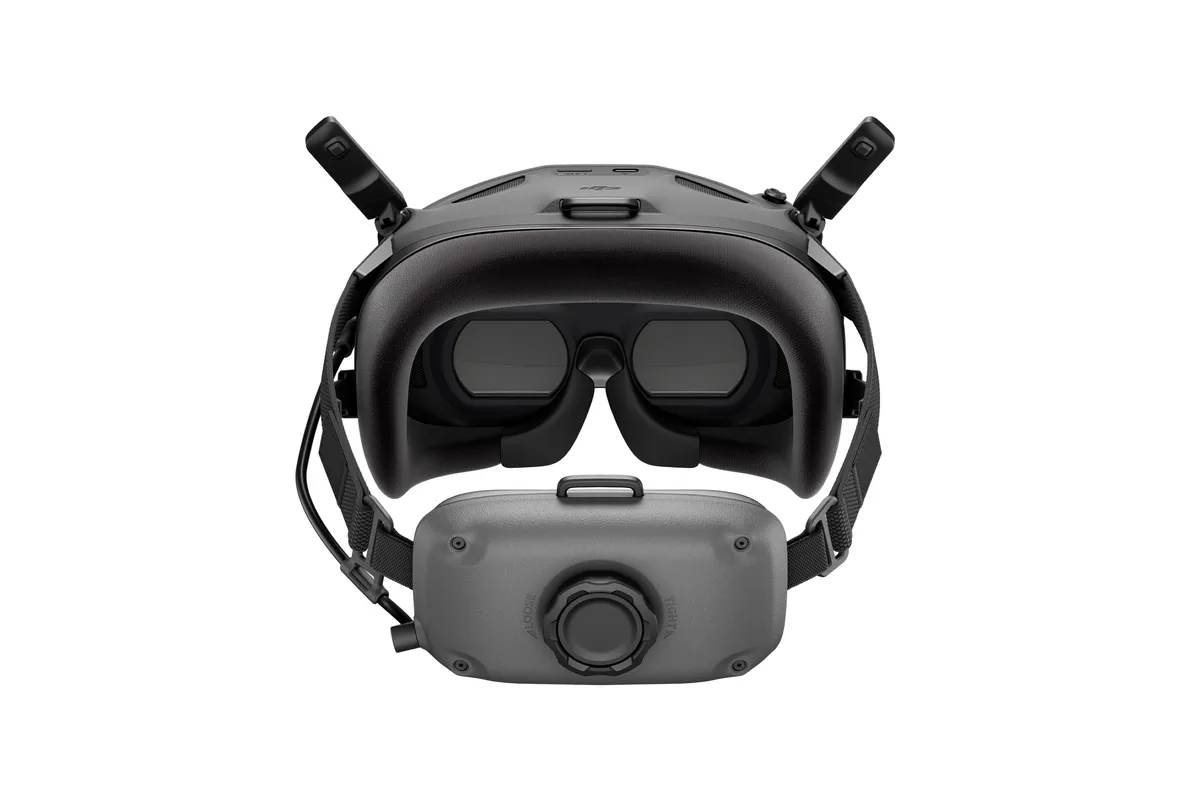

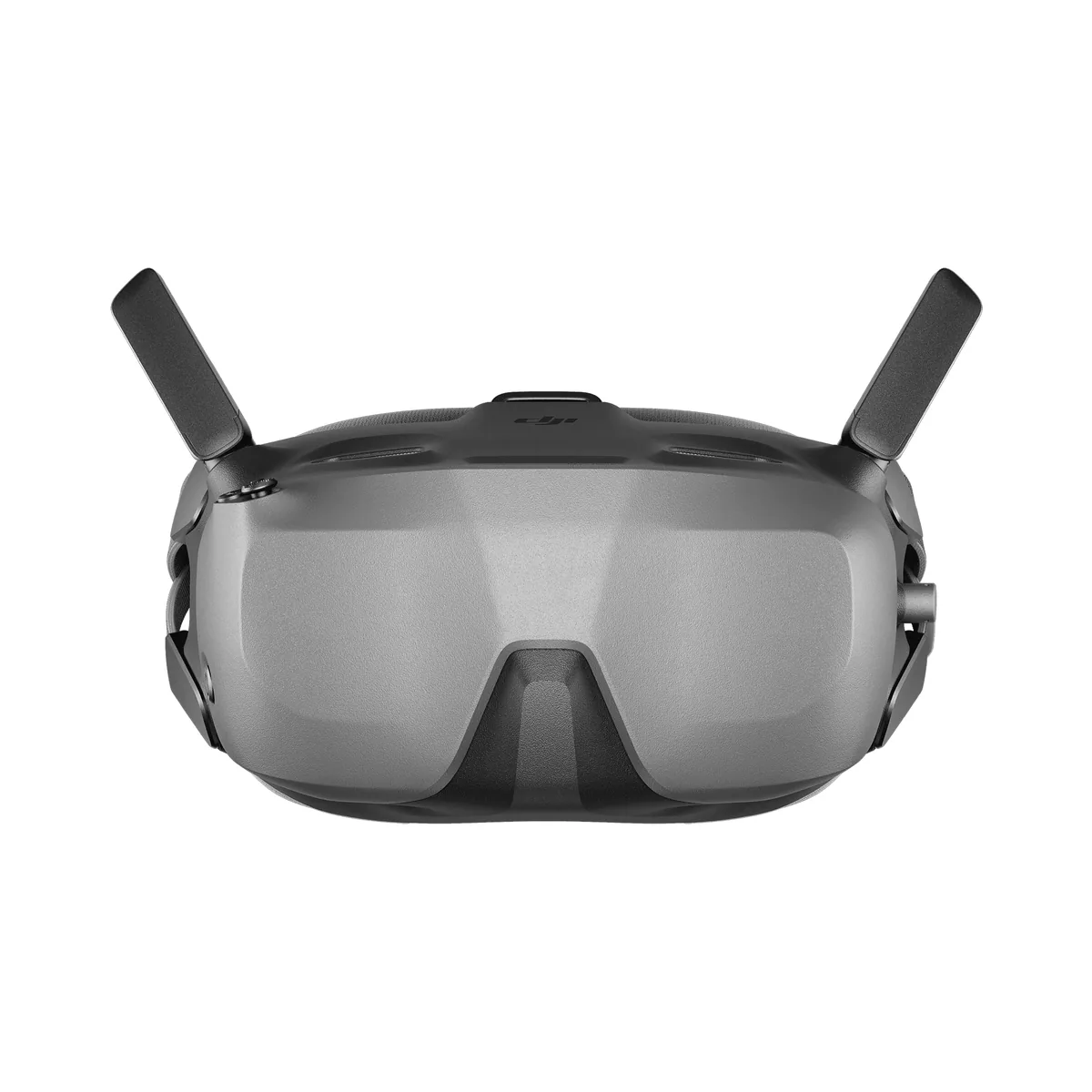

DJI N3 Goggles
- SKU
- 190021109285
- Barcode
- 190021109285
- Immersive flight experience
- Ready to use
- 1080p ultra-wide screen
- DJI O4 video transmission
Overview
DJI N3 Goggles by DJI, model 190021109285. Listed under Drone FPV & Optics in our Video range.
Weight: Approx. 536 g (battery and headband included) 349 g (battery and headband excluded).
Key features
- Immersive flight experience
- Ready to use
- 1080p ultra-wide screen
- DJI O4 video transmission
- AR cursor
- 2.7 hour max operating time
Specifications
| Model | TKGSM |
|---|---|
| Weight | Approx. 536 g (battery and headband included) 349 g (battery and headband excluded) |
| Dimensions | With antennas folded: 193×163×103 mm (L×W×H) With antennas unfolded: 206×163×132 mm (L×W×H) |
| Screen Size (single screen) | 3.5 inches |
| Resolution (single screen) | 1920×1080 |
| Refresh Rate | Up to 60 Hz |
| Interpupillary Distance Range | No interpupillary distance adjustment required, ready to use immediately. |
| Diopter Adjustment Range | Diopter adjustment not supported, can be used with personal glasses. |
| FOV (single screen) | 54° |
| Video Recording Format | MOV (video format: H.264) |
| Supported Video and Audio Playback Formats | MP4, MOV (video coding formats: H.264, H.265; audio formats: AAC, PCM) Panoramic Video: Spherical 2D panoramic videos Max Video Specification: 4K/60fps |
| Real View Display | Real View not supported. |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Power Input | Built-in battery |
| Supported SD CardS | microSD (up to 512 GB) |
| Recommended microSD Cards | Lexar Professional 1066x 64GB U3 A2 V30 microSDXC Lexar Professional 1066x 128GB U3 A2 V30 microSDXC Lexar Professional 1066x 256GB U3 A2 V30 microSDXC Lexar Professional 1066x 512GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 64GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 128GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 256GB U3 A2 V30 microSDXC Kingston CANVAS Go! Plus 512GB U3 A2 V30 microSDXC |
| Video Transmission | O4 |
| Operating Frequency | 2.400-2.4835 GHz 5.150-5.250 GHz 5.725-5.850 GHz Operating frequency allowed varies among countries and regions. Refer to local laws and regulations for more information. |
| Transmitter Power (EIRP) | 2.4 GHz: < 30 dBm (FCC) < 20 dBm (CE/SRRC/MIC) 5.1 GHz: < 23 dBm (CE) < 21 dBm (FCC) 5.8 GHz: < 33 dBm (FCC) < 30 dBm (SRRC) < 14 dBm (CE) |
| Video Transmission Latency | With DJI Avata 2: 1080p/100fps video transmission quality: Minimum 31 ms With DJI Neo: 1080p/60fps video transmission quality: Minimum 58 ms Measured in an open, outdoor environment without interference or obstructions. Actual data varies with different drone models. |
| Video Transmission Max Transmission Distance | With DJI Avata 2: 13 km (FCC) 10 km (CE/SRRC/MIC) With DJI Neo: 10 km (FCC) 6 km (CE/SRRC/MIC) Measured in an open, outdoor environment without interference or obstructions and represents the farthest communication range under each standard. The actual max transmission distance during flight is limited by the drone's max flight distance. Always pay attention to RTH reminders on the live view during your flight. |
| Max Video Bitrate | With DJI Avata 2: 60 Mbps With DJI Neo: 50 Mbps Measured in an open, outdoor environment without interference or obstructions. Actual data varies with the operating environment. |
| Capacity | 2450 mAh |
| Voltage | 6.33-8.4 V |
| Type | Li-ion |
| Chemical System | LiNiMnCoO2 |
| Energy | 17.28 Wh |
| Charging Temperature | 5° to 45° C (41° to 113° F) |
| Max Charging Power | 5 V/3 A (charging when powered off) |
| Runtime | 2.7 hours The 2.7-hour max operating time was measured at an ambient temperature of 25° C (77° F), screen brightness at 6, connected to the DJI Avata 2 aircraft, video transmission set to 1080p/100fps, Head Tracking off, and the goggles' battery fully charged and not supplying power to external devices such as smartphones. |
In the box
- DJI Goggles N3
- DJI Goggles N3 Foam Padding
- DJI Goggles N3 Top Headband
- Documents (Quick Start Guide, Safety Guidelines, and DJI Logo Stickers)
