Deity Microphones
Deity Theos DXTX Plug-On Transmitter
- SKU
- DP040A0043
- Model
- THEOS DXTX（Global)
- Barcode
- 6977162450445
- Record + Transmit XLR
- 32-Bit Float Protection
- Global OneBand Technology
- Incredible Battery Life
Overview
Deity Theos DXTX Plug-On Transmitter by Deity Microphones, model THEOS DXTX（Global). Listed under Transmitters in our Music & Audio range.
Key features
- Record + Transmit XLR
- 32-Bit Float Protection
- Global OneBand Technology
- Incredible Battery Life
- Large Colour Screen
- Analog Limiter
Warranty: Click here for warranty terms.
Specifications
| Frequency Range | 806.2 MHz - 809.7 MHz |
|---|---|
| RF Power | 10 mW |
| Channel Frequency Spacing | 700 kHz |
| Antenna Connector | 50Ω SMA |
| Dynamic Range | 123 dB |
| Frequency Response | 20 Hz - 20 kHz |
| Microphone Connector | 3-pin XLR / 5-pin XLR |
| Microphone Power | MIC-5V, MIC-48V, LINE, AES 42-10V, AES 3 |
| Low Cut Options | OFF, 75 Hz, 100 Hz, 150 Hz |
| ADC Bit Depth | 2 × 24-bit |
| ADC Sampling Rate | 48 kHz |
| Input Gain | 0 to +42 dBu |
| Dimensions (H × W × D) | 119 mm × 44.8 mm × 42 mm |
| Operating Temperature | -20°C to +45°C |

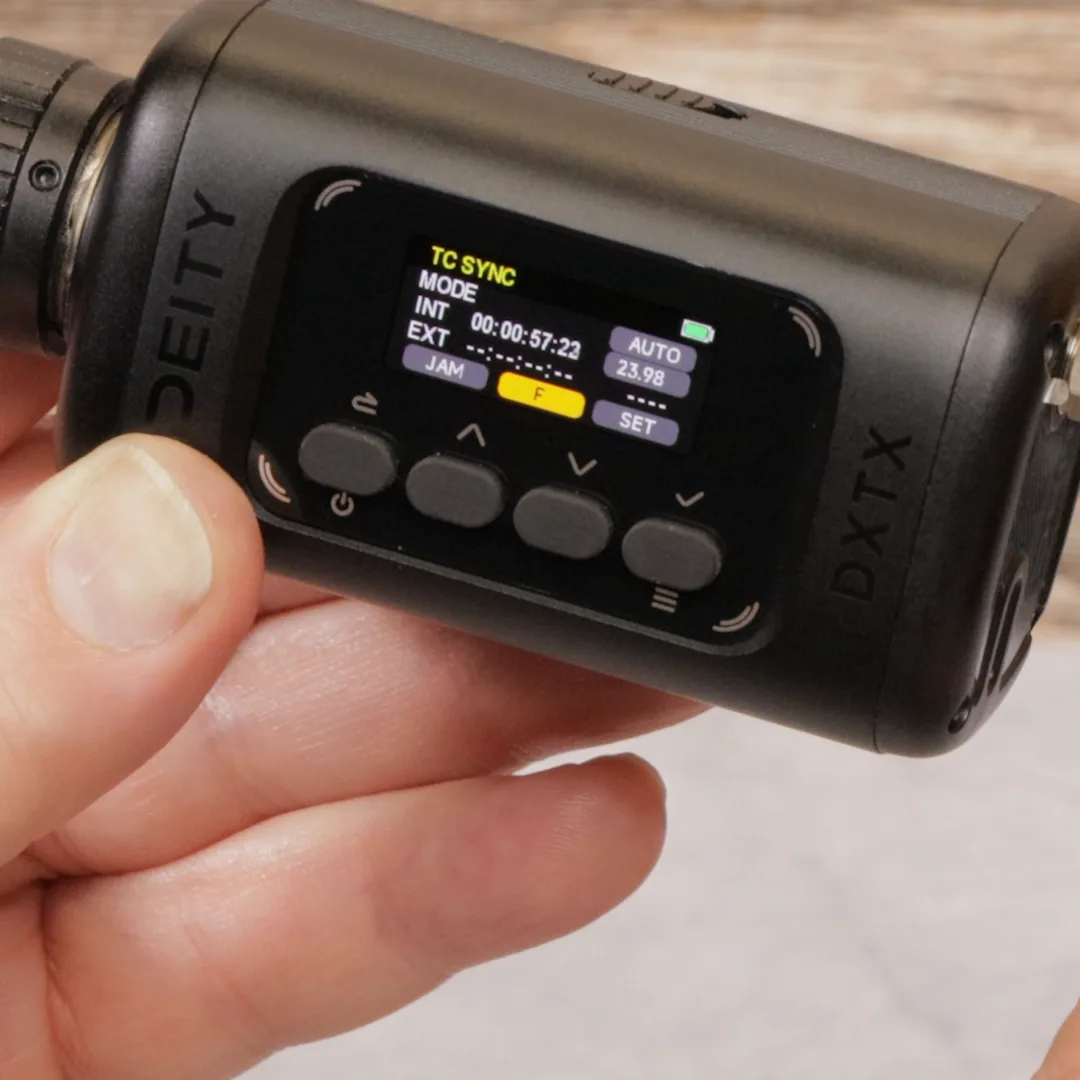

Time Code Function
| TC Accuracy | 0.15 PPM |
|---|---|
| TC Type | LTC (SMPTE) |
| TC Frame Rates | 23.98, 24, 25, 29.97, 29.97DF, 30, 30DF |
Internal Recording
| Recording Medium | Micro SD |
|---|---|
| File Formats | .wav |
| Recording Format | 24-bit / 32-bit float |
In the box
- Deity Theos DXTX Plug-On Transmitter
