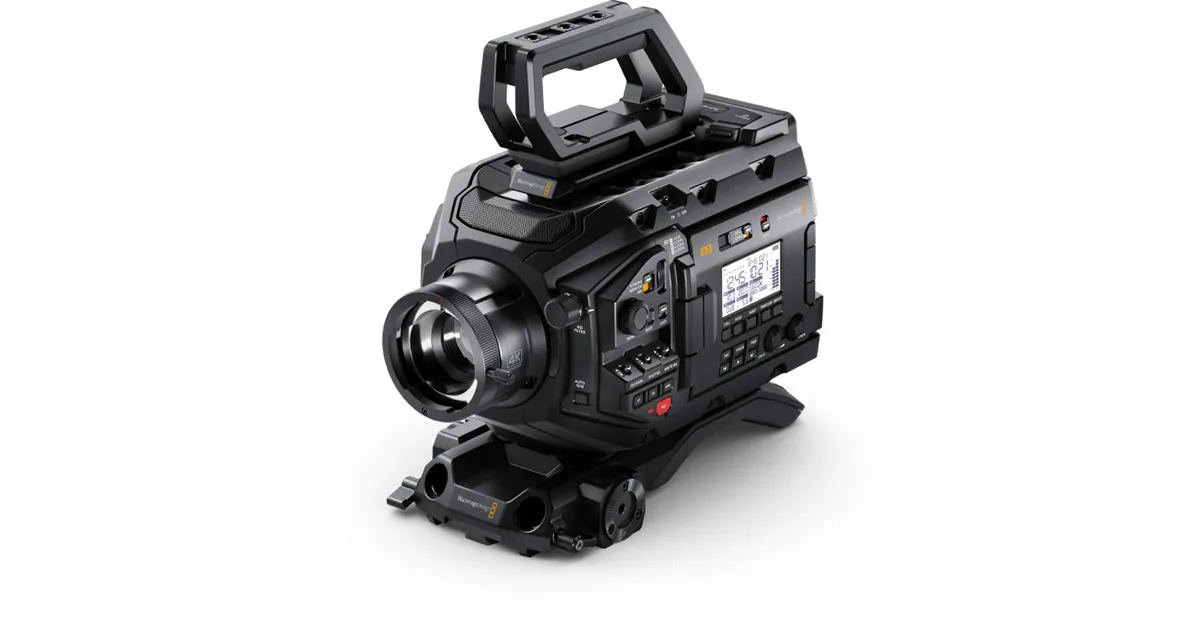

Blackmagic Design URSA Broadcast G2 Camera
Blackmagic

Blackmagic Design URSA Broadcast G2 Camera

SKU
CINEURSAMWC6KG2
Barcode
9338716007435
  • 6K Super35 CMOS Sensor, Dual Native ISO
  • 2/3" B4 Lens Mount & Active EF Mount
  • 6K Blackmagic RAW Recording
  • Records to ProRes, H.265/264

Overview

Blackmagic Design URSA Broadcast G2 Camera by Blackmagic, model CINEURSAMWC6KG2. Listed under Digital Cine Cameras in our Video range.

Lens mount: B4. Weight: 3.55 kg.

Key features

  • 6K Super35 CMOS Sensor, Dual Native ISO
  • 2/3″ B4 Lens Mount & Active EF Mount
  • 6K Blackmagic RAW Recording
  • Records to ProRes, H.265/264
  • 12G-SDI Input & Output, Genlock/Timecode

Specifications

Imaging

Lens MountB4
Interchangeable Lens MountYes
Lens CommunicationYes
Sensor ResolutionNot Specified by Manufacturer
Sensor Type23.1 x 12.99 mm (Super35) CMOS
Sensor Windowing4K (3840 x 2160) in 16:9 When Recording in Raw
Built-In ND FilterMechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
ISO Sensitivity400 to 3200 (Native) 100 to 25,600 (Expanded)
Shutter TypeGlobal Shutter
Gain-6 to 18 dB
Advertised Dynamic Range13 Stops

Internal Recording

Raw RecordingBlackmagic RAW 10-Bit: 6144 x 3456 at 50 fps (65 to 483 MB/s) 6144 x 2560 at 60 fps (49 to 359 MB/s) 5376 x 3024 at 60 fps (51 to 371 MB/s) 3728 x 3104 at 60 fps (36 to 265 MB/s) 3840 x 2160 at 60 fps (32 to 190 MB/s) 1920 x 1080 at 150 fps (5.2 to 47 MB/s)
Recording ModesProRes 422/ProRes 422HQ: 3840 x 2160p up to 60 fps (73.6 to 110 MB/s) 1920 x 1080p up to 60 fps (18.4 to 27.5 MB/s) 1920 x 1080p at 120 fps (18.4 to 27.5 MB/s) H.265: 3840 x 2160p up to 60 fps (3.2 to 7.8 MB/s) H.264: 1920 x 1080p up to 60 fps (1.8 to 7 MB/s)
Audio RecordingProRes: 2-Channel 24-Bit 48 kHz

Interface

Media/Memory Card SlotDual Slot: SD/SDHC/SDXC (UHS-II) Dual Slot: CFast (CFast 2.0)
Video Connectors1 x BNC (12G-SDI) Output 1 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Monitor Output
Audio Connectors1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Headphone Input/Output on Camera Body 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input on Camera Body
Built-In Microphone TypeStereo
Other I/O1 x USB Type-C USB 3.1 Gen 2 Video Output 1 x USB Type-C Data Input 1 x 2.5 mm LANC Control Output 1 x BNC Reference, Sync, Timecode Data Input 1 x 12-Pin Hirose Camera Interface Control Output
Wireless InterfacesBluetooth Control

Monitor

Size4.0"
Display TypeArticulating Touchscreen LCD
Secondary DisplaySide: LCD Status Display

EVF

EVFOptional, Not Included

Power

Battery TypeV-Mount
Power Connectors1 x 4-Pin XLR Input 1 x 4-Pin XLR (12 to 20 VDC) Output 1 x 12-Pin Molex Input
Power Consumption100 W

Environmental

Operating Temperature0 to 40°C
Storage Temperature-20 to 45°C
Operating Humidity0 to 90%

Physical

Tripod Mounting Thread3 x 1/4"-20 Female (Bottom)
MaterialMagnesium Alloy
Accessory Mount1 x ARRI/Hirth Rosette
Dimensions27.81 x 25.22 x 15 cm
Weight3.55 kg

In the box

  • Blackmagic Design URSA Broadcast G2 Camera
  • B4 Turret Dust Cap
  • EF Mount
  • EF Mount Dust Cap
  • EF Mount Screw
  • 12V/100W Power Supply
  • URSA Mini Shoulder Pad
  • URSA Mini Top Handle
  • V-Mount Battery Plate
  • V-Mount Plate Spare Screw
  • Viewfinder Mounting Plate
  • 1/4"-20 Baseplate Screw
  • Long 1/4"-20 Top Handle Screw
  • Short 1/4"-20 Top Handle Screw
  • DaVinci Resolve Studio Download QR Code
  • Camera Software Download QR Code
