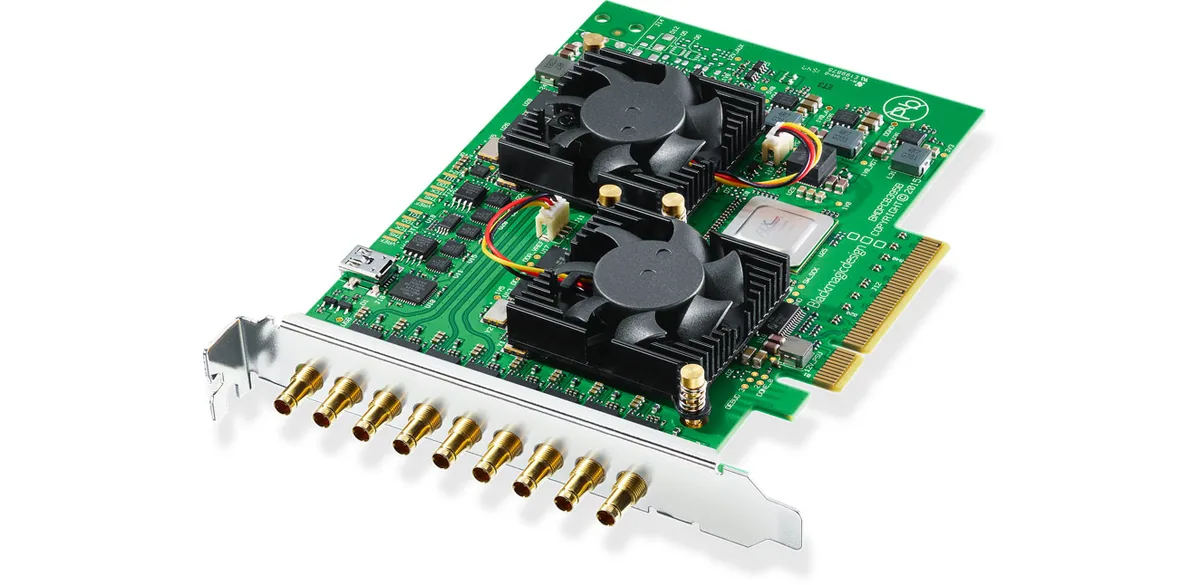

Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card
- SKU
- BDLKDVQD2
- Model
- Quad 2
- Barcode
- 9338716003468
- 8x Bi-Directional SD/HD/3G-SDI
- 8-Lane PCIe Interface
- Resolutions up to 1080p60
- Inputs/Outputs Independently Switchable
Overview
Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card by Blackmagic. Listed under Internal Interfaces in our Video range.
Weight: 130.12 g.
Key features
- 8x Bi-Directional SD/HD/3G-SDI
- 8-Lane PCIe Interface
- Resolutions up to 1080p60
- Inputs/Outputs Independently Switchable
- Supports Uncompressed RGB 4:4:4 Signals
Specifications
| Computer Interface | PCI Express 8-lane, compatible with 8 and 16 lane PCIe slots |
|---|---|
| Input / Output | 8 x Bi-directional SD/HD/3G-SDI, 12-bit (DIN 1.0/2.3 connectors) 1 x Reference Input (DIN 1.0/2.3 connector) |
| SDI Audio Input | 16 channels per input, embedded in SD and HD |
| SDI Audio Output | 16 channels per output, embedded in SD and HD |
| Sync Input | Blackburst in SD, 720p50, 720p59.94, 1080i50, and 1080i59.94 formats or Tri-Sync in any HD format |
| Codecs Supported | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4 |
| Resolutions and Frame Rates | 625/25 PAL 525/29.97 NTSC 720p 50/59.94/60 1080i 50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080p 23.98/24/25/29.97/30/50/59.94/60 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M A/B |
| SDI Metadata Support | VITC read for 3:2 pulldown removal VANC capture and playback using up to 3 lines of video in file HD RP188 and closed captioning |
| Audio Sampling | 48 kHz, 24-bit |
| Video Sampling | 4:2:2, 4:4:4 |
| Colour Precision | 8/10-bit YUV 4:2:2 8/10/12-bit RGB 4:4:4 |
| Colour Space | Rec. 601, Rec. 709 |
| Compatible Operating Systems | Mac OS X 10.10, 10.11, and later Windows 8 and Windows 10 64-bit Linux |
| Operating Temperature | 5 to 40°C |
| Storage Temperature | -20 to 45°C |
| Relative Humidity | 0 to 90% non-condensing |
| Length | 16 cm |
| Weight | 130.12 g |
In the box
- Blackmagic Design DeckLink Quad 2 8-Channel 3G-SDI Capture & Playback Card
- SD Card with Software
- Limited 3-Year Warranty
