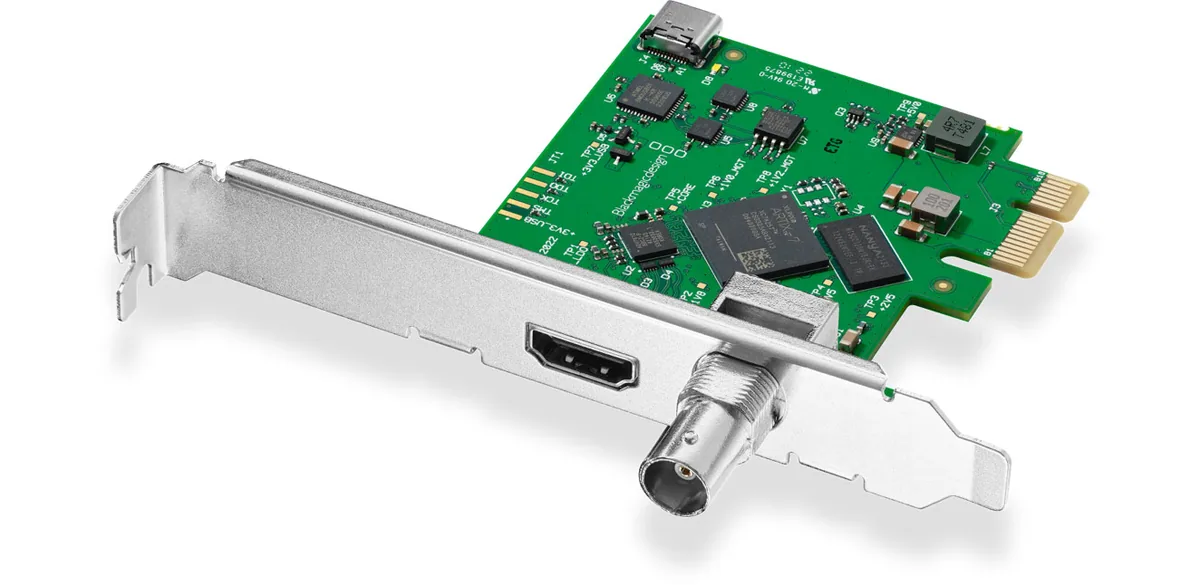

Blackmagic Design DeckLink Mini Recorder HD
Blackmagic

Blackmagic Design DeckLink Mini Recorder HD

SKU
BDLKMINIREC3G
Barcode
9338716007923
  • Low Profile 1 Lane Gen 2 PCI Express Card
  • Includes PCIe Shields for Both Regular and Low Profile Slots
  • Built in 3G-SDI and HDMI Connections
  • Supports All Common SD/HD Video Formats up to 1080p60

Overview

Blackmagic Design DeckLink Mini Recorder HD by Blackmagic, model BDLKMINIREC3G. Listed under Video Capture & Playback in our Video range.

Key features

  • Low Profile 1 Lane Gen 2 PCI Express Card
  • Includes PCIe Shields for Both Regular and Low Profile Slots
  • Built in 3G-SDI and HDMI Connections
  • Supports All Common SD/HD Video Formats up to 1080p60

Specifications

Connections

SDI Video Input1 x 10-bit SD/HD switchable
SDI Rates270Mb, 1.5G, 3G
SDI Audio Input16 channels embedded in SD/HD
HDMI Video Input1 x HDMI 2.0 type A connector
HDMI Audio Input8 channels embedded in SD/HD
Computer InterfacePCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots.
Supported CodecsAVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

Software IncludedMedia Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.
Internal Software UpgradeFirmware built into software driver. Loaded at system start or via updater software.
Physical InstallationPCI Express 1 lane generation 2, compatible with 1, 4, 8 and 16 lane PCI Express slots on Mac OS, Windows and Linux. Mac OS systems require a Mac Pro computer with PCI Express slots. Please check the Support pages to see the full system requirements.
Software ApplicationsWirecast vMix OBS
Other Supported ApplicationsCinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Livestream Producer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom.

SDI Video Standards

SDI Video Standards525i59.94 NTSC, 625i50 PAL
HD Video Standards720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
2K Video Standards2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
SDI ComplianceSMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M A/B
SDI Metadata SupportRP 188/SMPTE 12M-2 and closed captioning.
SDI Audio SamplingTelevision standard sample rate of 48 kHz and 24-bit.
SDI Video Sampling4:2:2, 4:4:4
SDI Colour Precision8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.
SDI Colour SpaceREC 601, REC 709 and REC 2020
Multiple Rate SupportSDI video connection is switchable between SD and HD.

HDMI Video Standards

HDMI Audio SamplingTelevision standard sample rate of 48 kHz and 24 bit.
HDMI Video Sampling4:2:2 and 4:4:4
HDMI Colour Precision8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.
HDMI ConfigurationHDMI 2.0 supports Deep Colour.
HDMI Colour SpaceREC 601, REC 709 and REC 2020
Copy ProtectionHDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Hardware Frame Bufferv210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).

Processing

Colourspace ConversionHardware based real time.
Operating SystemsMac 11.1 Big Sur, Mac 12.0 Monterey or later. Windows 10 64-bit, Windows 11. Linux

Power Requirements

Power Consumption3 Watts

Environmental Specifications

Operating Temperature5° to 40° C
Storage Temperature-20° to 45° C
Relative Humidity0% to 90% non-condensing

In the box

  • Blackmagic Design DeckLink Mini Recorder HD
  • Low profile slot bracket
