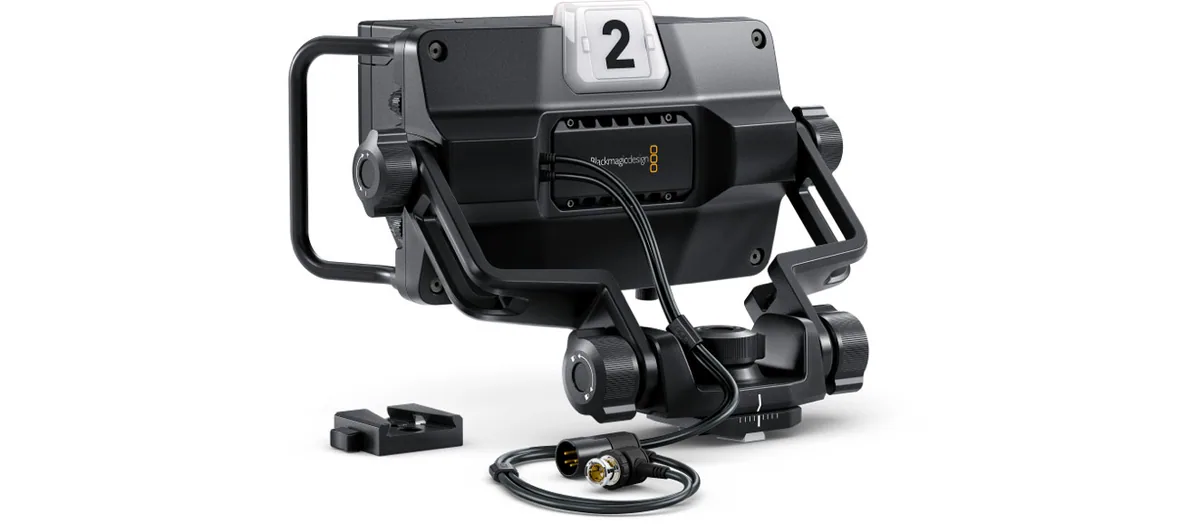

Blackmagic Design 7″ URSA Studio Viewfinder G2
Blackmagic

Blackmagic Design 7″ URSA Studio Viewfinder G2

SKU
CINEURSANSVF2
Barcode
9338716007695
  • Designed for URSA G2/URSA Mini Cameras
  • 7" 1920 x 1200 TFT LCD Screen
  • 3G-SDI Connector to Camera
  • 2000 cd/m² Brightness

Overview

Blackmagic Design 7″ URSA Studio Viewfinder G2 by Blackmagic, model CINEURSANSVF2. Listed under Viewfinders in our Video range.

Weight: 2.69 kg.

Key features

  • Designed for URSA G2/URSA Mini Cameras
  • 7″ 1920 x 1200 TFT LCD Screen
  • 3G-SDI Connector to Camera
  • 2000 cd/m² Brightness
  • 4-Pin XLR Power, V-Lock Mount

Specifications

Display

Colour/MonochromeColour
Panel TypeTFT LCD
Display Size7.0" / 17.8 cm
Screen Resolution1920 x 1200
TouchscreenNo
Maximum Brightness2000 cd/m 2
Image ControlsFalse Colour, Focus Assist, Focus Peaking, Screen Markers

I/O

Video1 x BNC (3G-SDI) Input
Video FormatSDI (10-Bit 4:2:2 YUV) 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50
Power1 x 4-Pin XLR (12 VDC) Input
Other I/O1 x USB 2.0 (USB Type-C) Input

Power

DC Input Power12 VDC

Environmental

Operating Humidity0 to 90% (Non-Condensing)
Operating Temperature0 to 40°C
Storage Temperature-20 to 60°C

General

Mounting1 x V-Lock
Dimensions33.1 x 30.4 cm
Weight2.69 kg

In the box

  • Blackmagic Design 7" URSA Studio Viewfinder G2
  • Sun Hood
