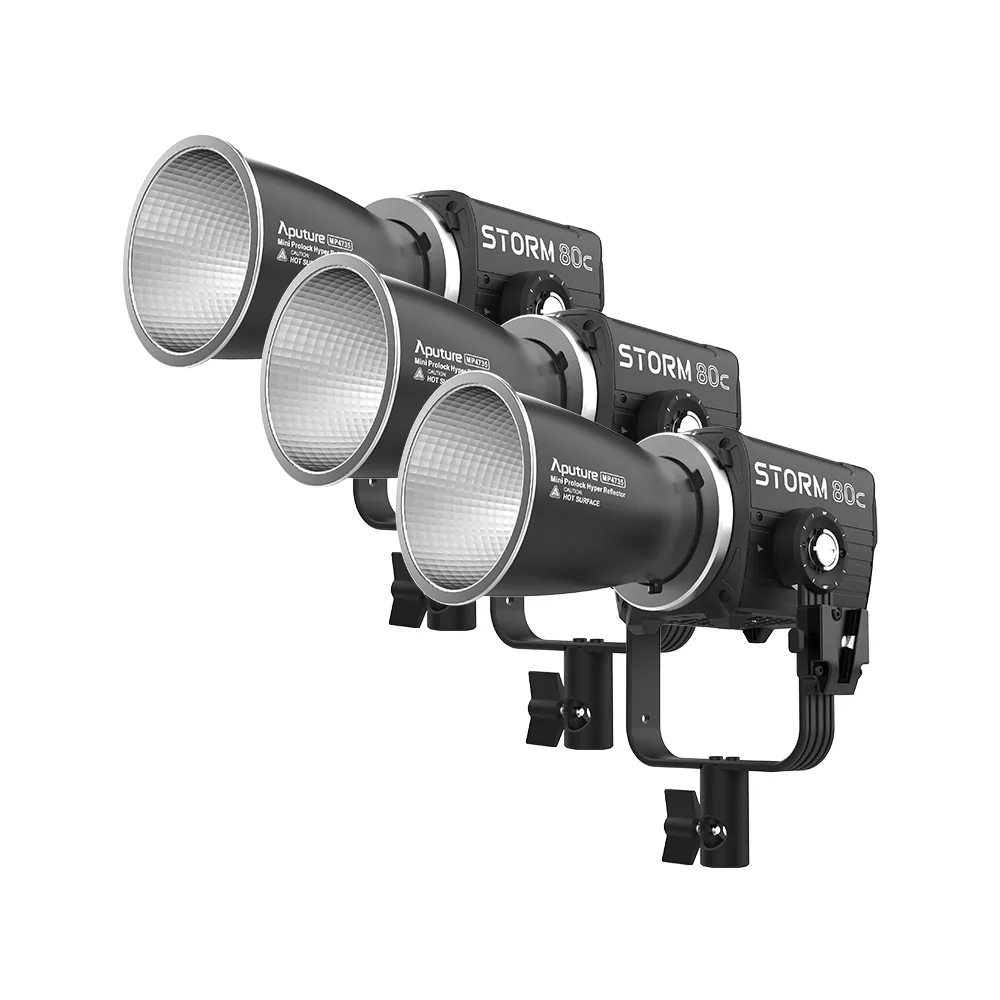

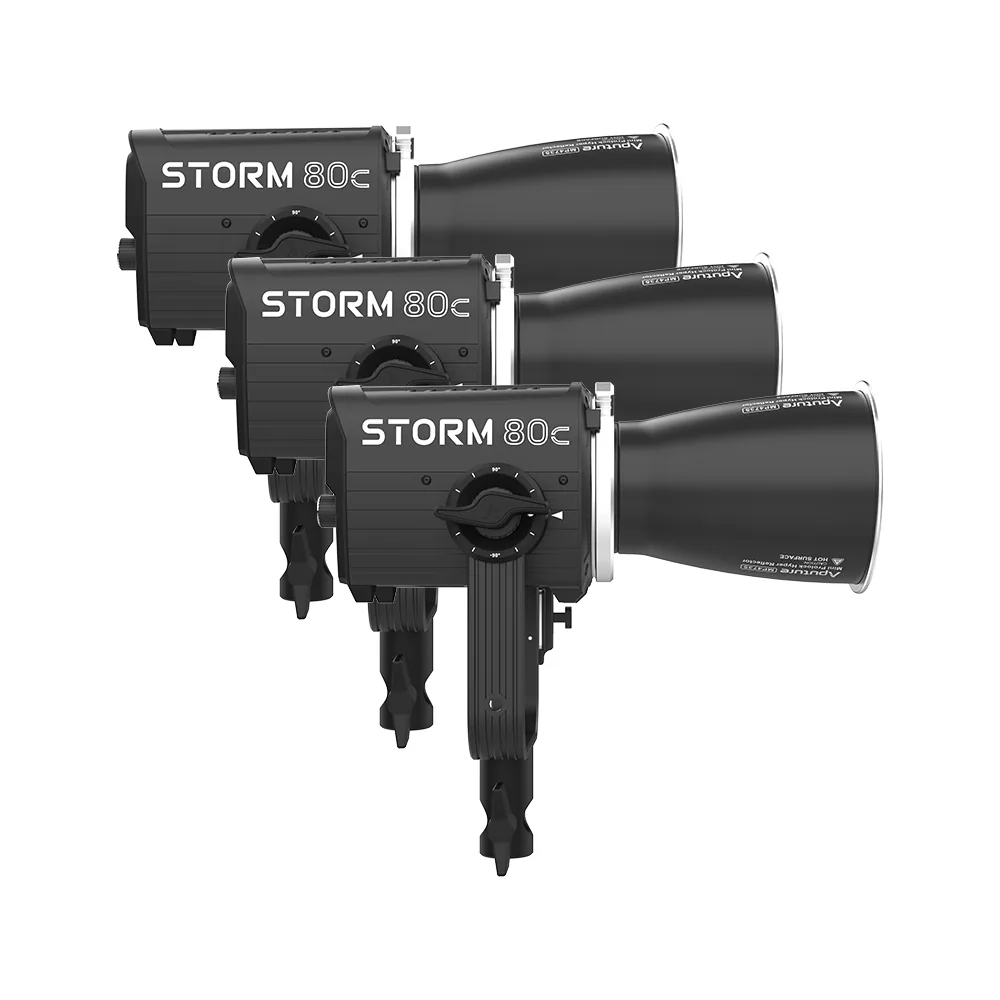

Aputure Storm 80c LED Monolight 3-Light Kit

Aputure Storm 80c LED Monolight 3-Light Kit

SKU: AP0703012L
Barcode: 6977162453651

Three STORM 80c Light Fixtures
Two CF4 Fresnels and Barn Doors
One Light Dome and Bowens Adapter
One Handheld Bracket, Three D-Tap Cables

Overview

Aputure Storm 80c LED Monolight 3-Light Kit by Aputure, model AP0703012L. Listed under LED Light Kits in our Lighting & Studio range.

Compatible with Aputure STORM` 80c. Weight: 2.23 lb / 1.01 kg (Fixture without Yoke) 2.98 lb / 1.35 kg (Fixture with Yoke) 0.9 lb / 405 g (Power Supply/Controller).

Key features

Three STORM 80c Light Fixtures
Two CF4 Fresnels and Barn Doors
One Light Dome and Bowens Adapter
One Handheld Bracket, Three D-Tap Cables
Three AC Adapters and 13.1′ Power Cables
Three Mini ProLock Mount Covers

Warranty: 1 year manufacturer warranty.

Specifications

Light Fixture

Item Type	1x LED Monolight
Included Light Modifier	1x Reflector 1x Diffuser
Included Storage Case	Yes
Lumens	13,201 (at 3200K)
Photometrics	35° at 3200K: 1806 fc / 19,443 Lux at 3.3' / 1 m (with Reflector) Standardised Measurement Supplied by the Manufacturer 35° at 5600K: 1844 fc / 19,850 Lux at 3.3' / 1 m (with Reflector) Standardised Measurement Supplied by the Manufacturer
Colour Temperature	1800 to 20,000K
Colour Modes	RGB
Colour Accuracy Standard	CRI 97 TLCI 99 CQS 96 at 5600K CQS 97 at 3200K SSI 88 SSI 84 TM-30 Rf 96 TM-30 Rg 103
Dimming	App-Controlled / Built-In Dimmer / DMX (Continuous)
Beam Angle	35° with Included Reflector 60° Unmodified
Built-In Flash	No
Preprogrammed Effects	Yes
Umbrella Mount	No
Front Accessory Mount	Proprietary

Connectivity

Wireless Remote Control Type	Bluetooth Wireless CRMX
Mobile App Compatible	Yes: Android & iOS

Power & I/O

Power Source	AC Power (Cable Included) *Requires Power Supply/Controller (Included)
Inputs/Outputs	1x USB-C Firmware Input/Output 1x XLR 3-Pin DMX Input
Battery Plate Type	1x V-Mount (Not Included)
Battery	1x V-Mount Rechargeable, 14.4 VDC (Not Included)
Input Power	100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable	1x Proprietary to IEC Cable • 19 VDC at 5.3 A
Power Consumption	100 W (Maximum)

Mounting

Yoke Type	Manually-Operated Yoke
Fixture Mounting	Accessory Mount 2x 3/8"-16 Female Thread 2x 3/8"-16 Female Thread (Via Yoke Mount)

General

Display	LCD
Environmental Resistance	Dust/Water-Resistant (IP65)
Operating Conditions	-4 to 113°F / -20 to 45°C
Storage Conditions	-40 to 176°F / -40 to 80°C
Dimensions	5.8 x 4.1 x 4" / 14.7 x 10.4 x 10.1 cm (Fixture without Yoke) 8.9 x 6.6 x 5.8" / 22.5 x 16.7 x 14.7 cm (Fixture with Yoke)
Weight	2.23 lb / 1.01 kg (Fixture without Yoke) 2.98 lb / 1.35 kg (Fixture with Yoke) 0.9 lb / 405 g (Power Supply/Controller)
Compatibility	Aputure STORM` 80c
Connector 1	D-Tap Male
Connector 2	Barrel / Coax Male
Cable Length	Not Specified by Manufacturer

Physical

Mounting	1x Mini ProLock
Colour	Black

Aputure Barndoors for CF4 Fresnel

Light Compatibility	Proprietary Mount: For Aputure CF4 Fresnel / Aputure STORM 80c
Material	Aluminium

Aputure Light Dome 40 with Grid for STORM 80c

Interior Colour	Silver
Quick Open Type	Click/Locking Type
Accepts Grids	Yes (Included)
Removable Front Face	Yes
Interior Baffle	Yes, Removable
Light Loss/Gain	1- to 2-Stop Loss (with Diffuser)

Aputure Universal Magic Arm

Connections	2 x 3/8"-16 Male Stud
Number of Sections	2
Points of Articulation	3

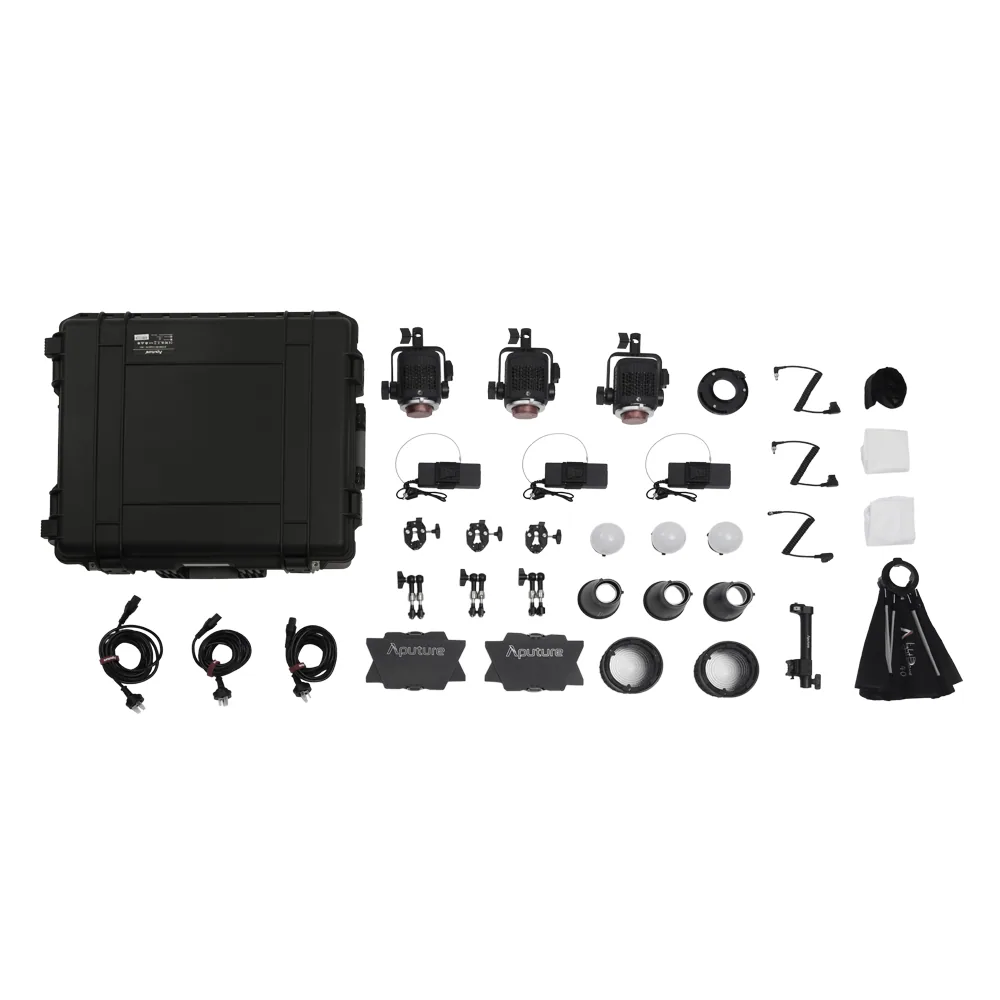

In the box

3x Aputure Storm 80c LED Monolight
2x Aputure CF4 Fresnel for STORM 80c
2x Aputure Barndoors for CF4 Fresnel
Aputure Light Dome 40 with Grid for STORM 80c (15.7")
Aputure Handheld Bracket with V-Mount and D-Tap Cable for STORM 80c
Aputure Mini ProLock to Bowens Mount Adapter for STORM 80c Monolight
3x Aputure D-Tap to Locking 5.5mm DC Barrel Power Cable for STORM 80c
3x Aputure Super Clamp with T-Handle
3x Aputure Universal Magic Arm
