Aputure

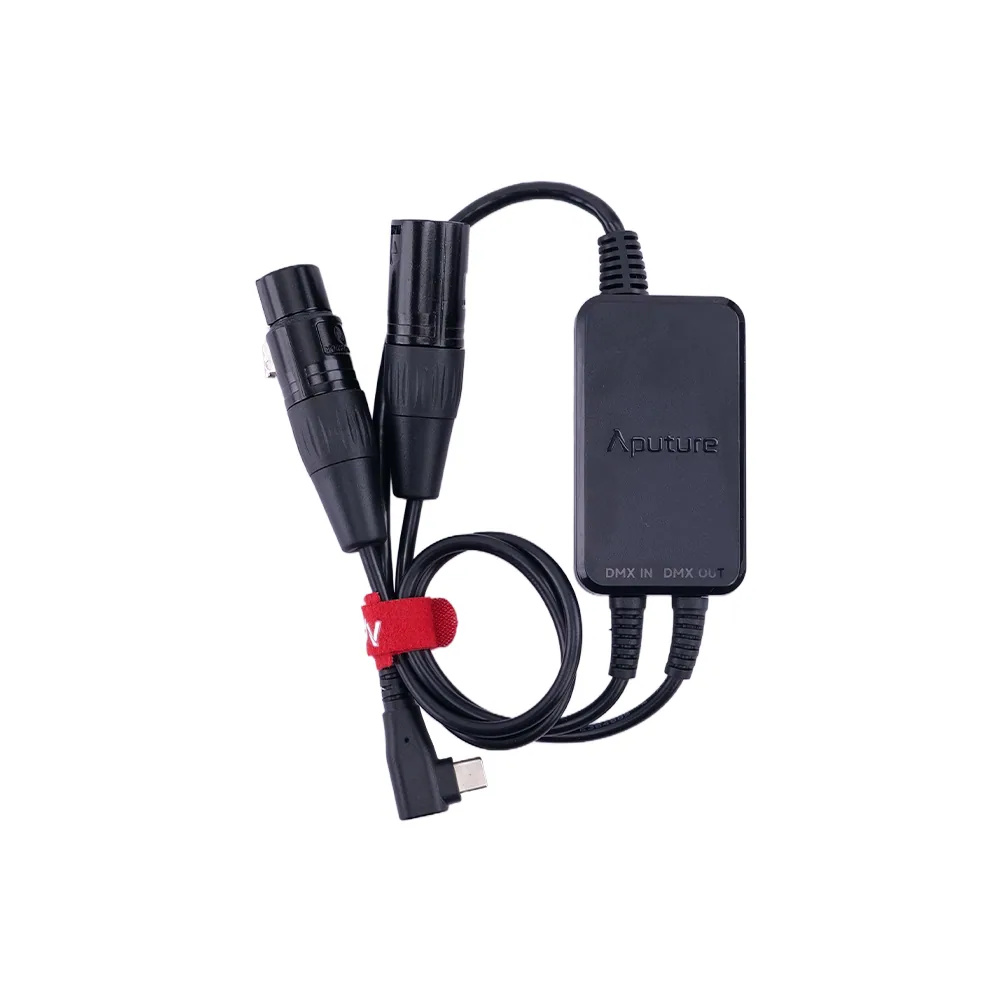

amaran USB-C to 5-Pin DMX In & Out Adapter
- SKU
- MA0006041R
- Barcode
- 6977162459158
- For Ray 360c & 660c Fixtures
- Enables DMX Control via USB-C
- Wired 8-Bit DMX512 Control
- Locking USB-C Connector
Overview
amaran USB-C to 5-Pin DMX In & Out Adapter by Aputure, model MA0006041R. Listed under DMX Devices in our Lighting & Studio range.
Weight: 8.5 oz / 240 g.
Key features
- For Ray 360c & 660c Fixtures
- Enables DMX Control via USB-C
- Wired 8-Bit DMX512 Control
- Locking USB-C Connector
- Hook-and-Loop Straps
- Integrated 1/4”-20 Screw
Warranty: 1 year manufacturer warranty.
Specifications
General
| Inputs/Outputs | 1x XLR 5-Pin (DMX) Input 1x XLR 5-Pin (DMX) Female Output 1x USB-C (DMX) Locking Male Output 1x USB-A |
|---|---|
| Channels | 512 (DMX) |
| Dimming | Optional |
| Cooling System | No |
Compatibility
| Protocol | DMX512 |
|---|
Physical
| Environmental Resistance | No |
|---|---|
| Dimensions | 6.8 x 5.2 x 2.6" / 17.2 x 13.2 x 6.7 cm |
| Weight | 8.5 oz / 240 g |

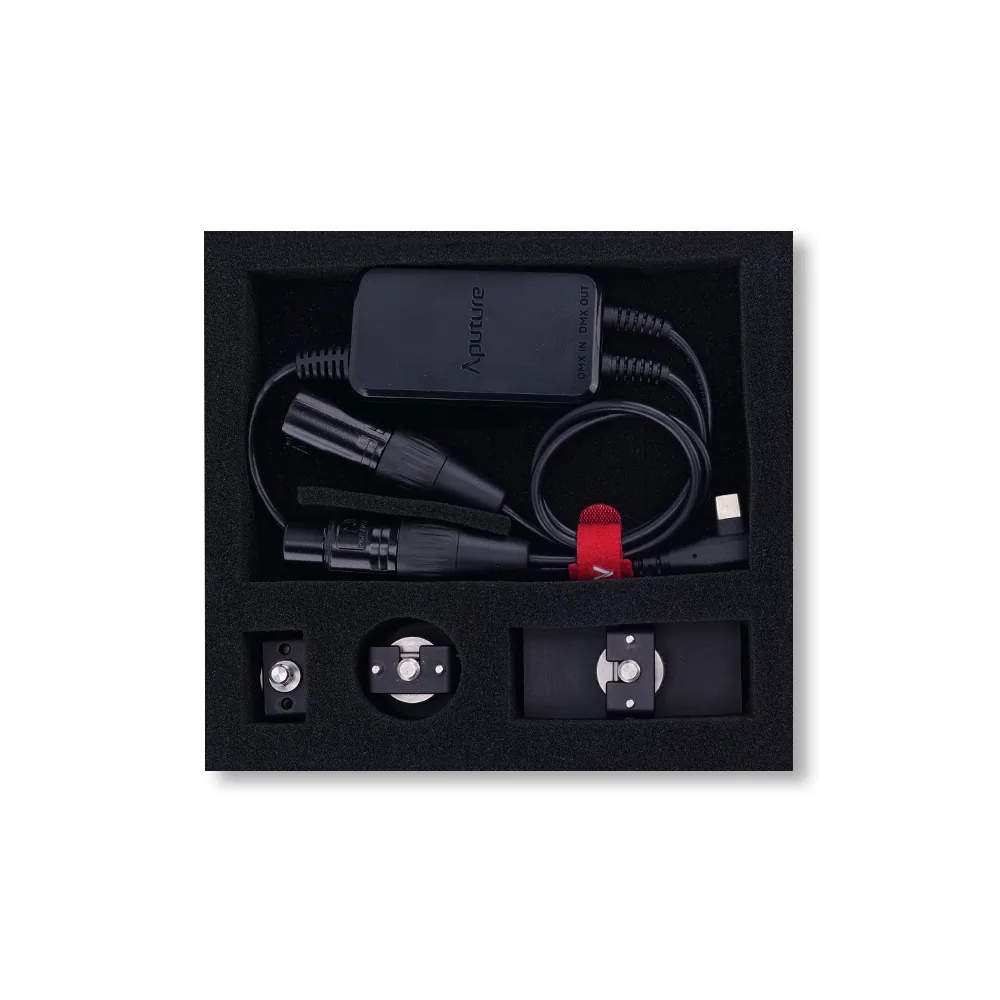

In the box
- amaran USB-C to 5-Pin DMX In & Out Adapter
