amaran Ray 360c RGB LED Monolight
amaran Ray 360c RGB LED Monolight
amaran Ray 360c RGB LED Monolight
amaran Ray 360c RGB LED Monolight
amaran Ray 360c RGB LED Monolight
amaran Ray 360c RGB LED Monolight
Aputure

amaran Ray 360c RGB LED Monolight

SKU
MP00000191
Model
Ray360C
Barcode
6977162453255
  • For Film, Broadcast & Video Production
  • Output: 17,130 Lux at 3.3' (Bare)
  • 1800-20,000K CCT+; RGB Colour Control
  • AC Power & Optional USB-C DMX Control

Overview

amaran Ray 360c RGB LED Monolight by Aputure, model Ray360C. Listed under LED Lights in our Lighting & Studio range.

Weight: 7.28 lb / 3.3 kg (Fixture).

Key features

  • For Film, Broadcast & Video Production
  • Output: 17,130 Lux at 3.3′ (Bare)
  • 1800-20,000K CCT+; RGB Colour Control
  • AC Power & Optional USB-C DMX Control
  • Onboard & App Control; FlowTurn & NFC
  • CRI & TLCI 95
  • SSI 80/87
  • TM-30 94/100

Warranty: 1 year manufacturer warranty.

Specifications

Light Fixture

Item Type1x COB LED Monolight
Included Light Modifier1x Reflector
Included Storage CaseYes
Lumens23,174
Photometrics70° at 3200K: 1477 fc / 15,900 Lux at 3.3' / 1 m (Unmodified) 171 fc / 1850 Lux at 9.8' / 3 m (Unmodified) 45° at 3200K: 3883 fc / 41,800 Lux at 3.3' / 1 m (with Reflector) 388 fc / 4180 Lux at 9.8' / 3 m (with Reflector) 70° at 5600K: 1583 fc / 17,040 Lux at 3.3' / 1 m (Unmodified) 183 fc / 1970 Lux at 9.8' / 3 m (Unmodified) 45° at 5600K: 4143 fc / 44,600 Lux at 3.3' / 1 m (with Reflector) 405 fc / 4360 Lux at 9.8' / 3 m (with Reflector)
Colour Temperature1800 to 20,000K 2300 to 10,000K
Colour ModesRGB, Daylight, Tungsten
Colour Accuracy StandardCRI 95 TLCI 95 TM-30 Rf 94 TM-30 Rg 100 SSI 80 at 5600K SSI 87 at 3200K
DimmingApp-Controlled / Built-In Dimmer / DMX • 0 to 100%
Cooling SystemFan
Beam Angle70° Unmodified 45° with Included Reflector
Built-In FlashNo
Preprogrammed EffectsYes
Umbrella MountYes
Front Accessory MountBowens S

Connectivity

Wireless Remote Control TypeBluetooth
Mobile App CompatibleYes: Android & iOS App Name: amaran Functionality: Firmware Update, Remote Control
Wireless Range262.5' / 80 m (Bluetooth)

Power & I/O

Power SourceAC Power (Cable Included)
Inputs/Outputs1x Unspecified AC Power Input (100 to 240 VAC, 50 / 60 Hz) 1x USB-C DMX/Firmware Input *Adapter Required (Not Included)
Input Power100 to 240 VAC, 50 / 60 Hz
Included Adapter / Cable1x USA Type-A/B Plug to Unspecified Cable (16.4' / 5 m)
Inline SwitchNo
Power Pass-ThruNo
Power Consumption410 W (Maximum)

Mounting

Fixture Mounting1x 5/8" Receiver (Via Swivel Mount)

General

DisplayLCD
Environmental ResistanceDust/Water-Resistant (IP54)
Operating Conditions14 to 104°F / -10 to 40°C
Storage Conditions-4 to 176°F / -20 to 80°C
Dimensions10.04 x 6.5 x 5.83" / 25.5 x 16.51 x 14.81 cm (Fixture)
Weight7.28 lb / 3.3 kg (Fixture)

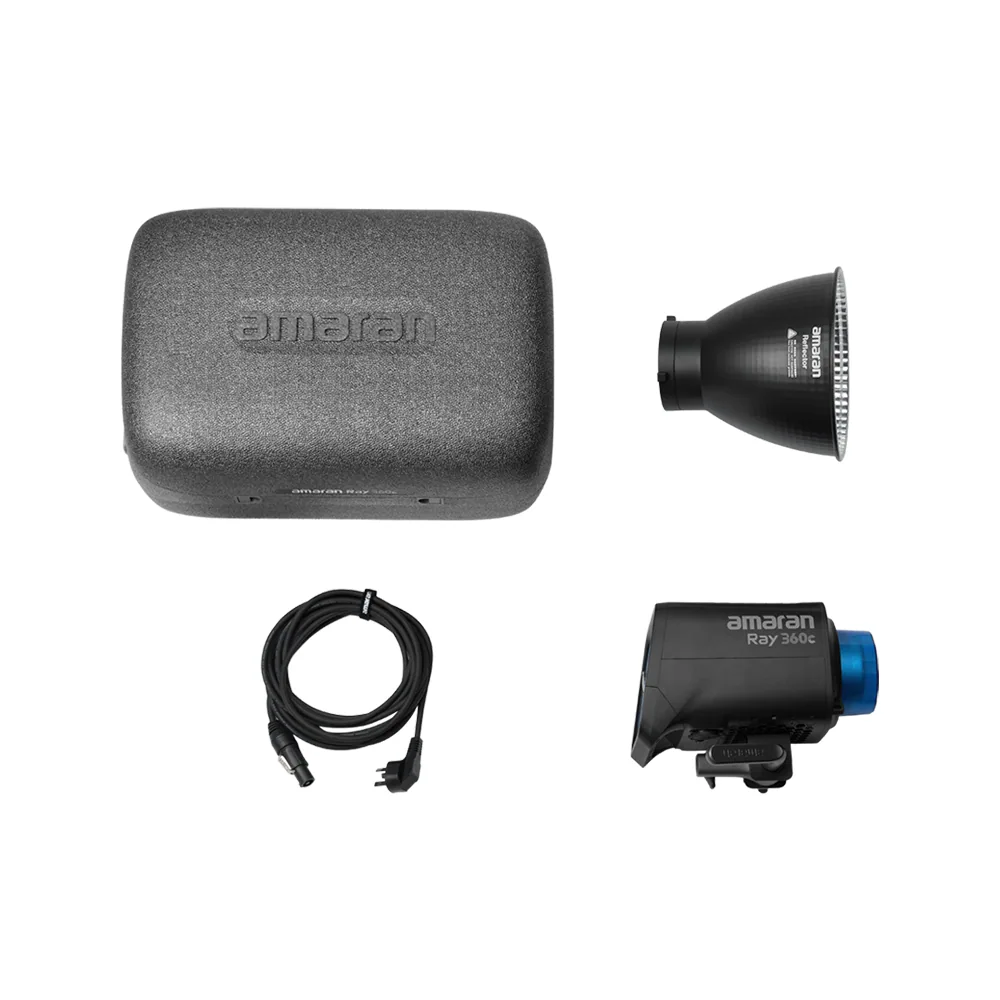

In the box

  • amaran Ray 360c RGB LED Monolight
  • Reflector
  • AC Power Cable (16.4')
  • Blue Bowens Mount Protection Cover
  • Carry Bag
